USB-XC PLC Programming Cable for Xinje XC XD XE Series | USB to RS232 Download Line in pakistan
₨ 4,000.00
USB-XC PLC Programming Cable for Xinje XC XD XE Series | USB to RS232 Download Line in pakistan

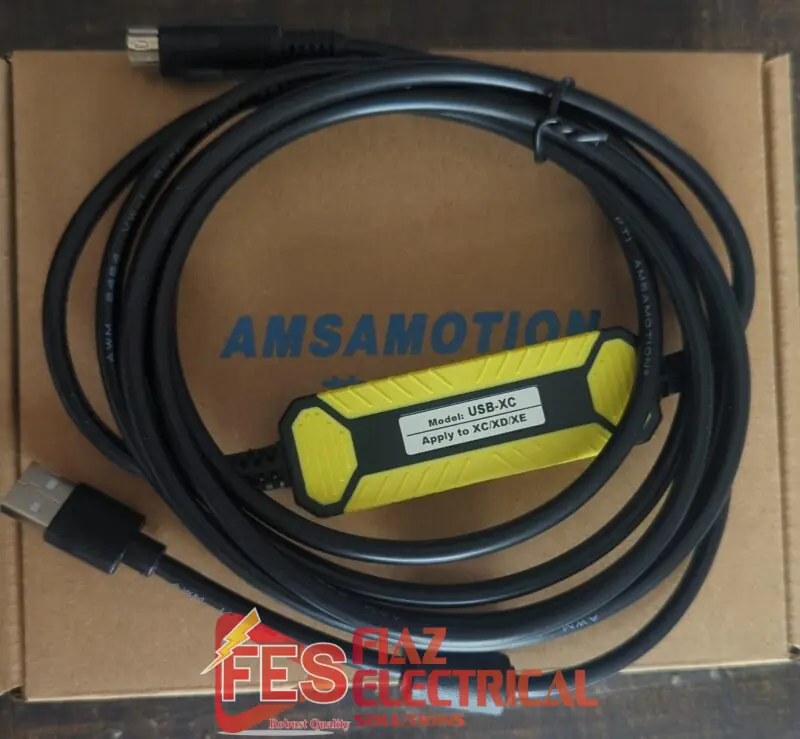

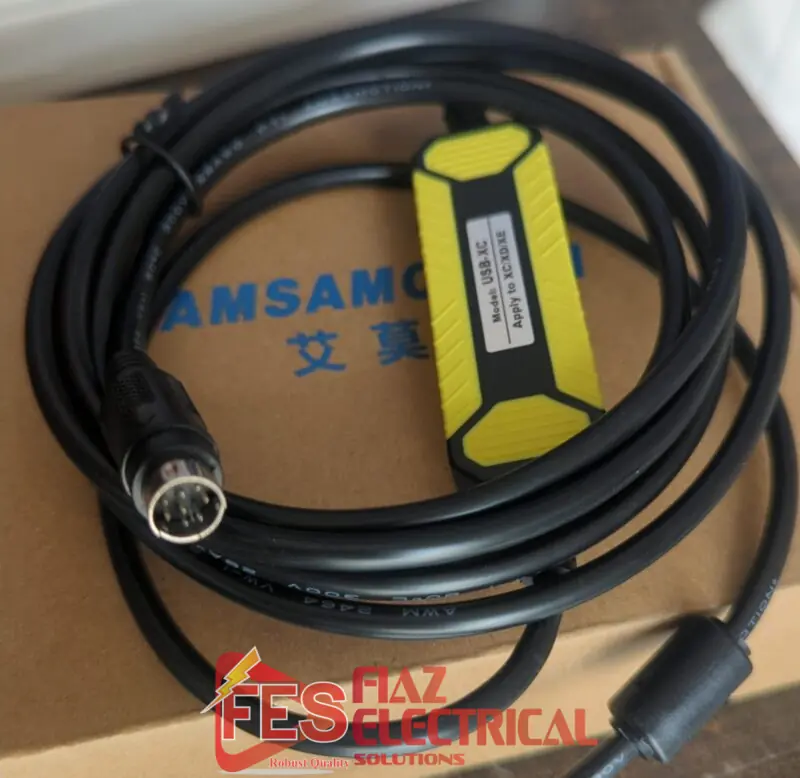

The USB-XC PLC Programming Cable provides a high-performance link between your computer and Xinje PLC systems, including the XC1, XC2, XC3, XC5, XD, and XE series. Equipped with an integrated USB-to-RS232 conversion chip, it simulates a traditional COM port to ensure fast, stable data transmission with XCPPRO software. Features a rugged round 8-pin mini-DIN connector on one end and a standard USB interface on the other
USB-XC PLC Programming Cable for Xinje XC XD XE Series | USB to RS232 Download Line in pakistan
- Universal Compatibility: Specifically tailored for XINJE XC, XD, and XE series PLCs.
- Plug-and-Play Simulation: Converts your USB port into a standard serial COM port for automatic adaptation to baud rates from 300 bps to 1 Mbps.
- Industrial Build Quality: Built with high-purity copper stranded conductors wrapped in insulated PVC/rubber casing for excellent anti-interference performance. [1
- No External Power Needed: Low power draw (approx. 50 mA) running entirely on USB bus power.
- Gold-Plated Connectors: Resists corrosion and guarantees solid electrical connections through thousands of insertion cycles.
- Install the Driver: Download and install the USB-to-Serial converter driver on your PC before inserting the cable.
- Verify the COM Port: Connect the cable and check your Windows Device Manager under “Ports (COM & LPT)” to note the assigned virtual COM port number.
- Setup Software Port: Open your XCPPRO programming software, click Option > Software Serial Port Config, and choose the matching COM port.
- Connect and Download: Ensure your software communication parameters match your PLC default settings (typically 19200 baud, 8 data bits, Even parity, 1 stop bit) to begin uploading or downloading your ladder logic.
| Feature / Parameter | Product Technical Specifications |
|---|---|
| Model Number | USB-XC |
| Host Interface | Standard USB V1.1 / V2.0 Type A Male |
| PLC Interface | Round 8-Pin Mini-DIN Male |
| Supported PLCs | Xinje XC1, XC2, XC3, XC5, XD, XE, X1 Series |
| Cable Length | Approx. 2.5 meters to 3 meters (Variant Dependent) |
| Conductor Material | High-Grade Stranded Copper |
| Insulation Jacket | Heavy-Duty Insulated PVC |
| OS Compatibility | Windows XP, Vista, Windows 7, Windows 8, Windows 10 (32/64-bit) |
| Current Consumption | ≤ 50 mA (USB Bus Powered) |
| Certifications | CE compliant |
- What software does this use? It uses official XINJE XCPPRO or XDPro software (not included).
- Does it require drivers? Yes, a USB-to-Serial driver is required for Windows to recognize the virtual COM port.
- Recommended Cross-Sells: Add matching Xinje HMI communication lines, 24V DC Industrial Power Supplies, or DIN Rail PLC Expansion Modules to your cart to optimize shipping costs.
