USR-DR302 DIN-Rail RS485 to Ethernet ,Modbus Rtu to TCP Converters gateway in Pakistan

Name: USR-DR302 DIN-Rail RS485 to Ethernet ,Modbus Rtu to TCP Converters gateway in Pakistan
SKU: usr-dr302
Availability: InStock

₨ 8,150.00

دکاندار حضرات ہول سیل ریٹ اور بلٹی کے معاملات کے لیے اس نمبر پر واٹس ایپ/ کال کرے 03001178484

USR-DR302 DIN-Rail RS485 to Ethernet ,Modbus Rtu to TCP Converters gateway in Pakistan.The USR-DR302 is an industrial-grade DIN-rail RS485 to Ethernet converter designed for transparent bidirectional data transmission.

SKU: usr-dr302 Category: Uncategorized Tags: Modbus Rtu to TCP Converters gateway in Pakistan, USR-DR302 DIN-Rail RS485 to Ethernet

Description
Reviews (0)

USR-DR302 DIN-Rail RS485 to Ethernet ,Modbus Rtu to TCP Converters gateway in Pakistan

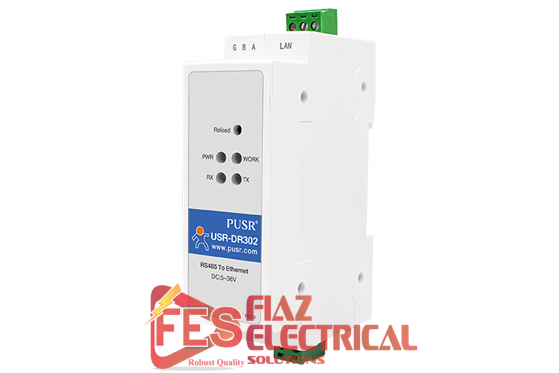

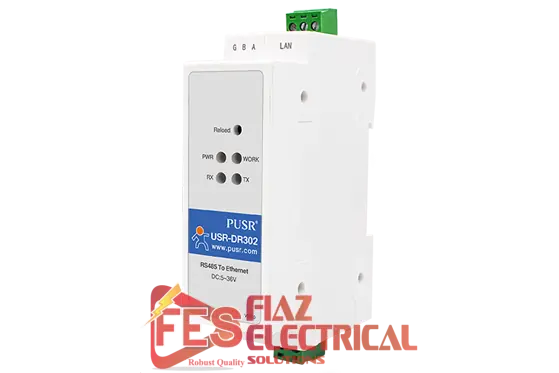

The USR-DR302 is an industrial-grade DIN-rail RS485 to Ethernet converter designed for transparent bidirectional data transmission. It seamlessly bridges serial devices and Ethernet networks, making it a reliable, cost-effective solution for industrial automation, IoT integration, and smart facility management.

Key Features

- Industrial Reliability: Built on an ARM Cortex-M0 kernel with a robust TCP/IP stack. It operates flawlessly in extreme environments from -40°C to 85°C.
- Versatile Working Modes: Supports TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client, and Modbus TCP/RTU protocol conversion.
- Modbus Gateway: Easily translates Modbus RTU to Modbus TCP and vice versa, enabling seamless polling of multiple hosts.
- Compact & Easy Installation: Space-saving design with standard 35mm DIN-rail mounting, allowing for easy placement in control cabinets.
- Smart Data Management: Features custom heartbeat and registration packages, ensuring network stability and device identification.
- Flexible Configuration: Quickly configure device parameters via a web browser, AT commands, or manufacturer software.

Technical Specifications

- Serial Port: RS485 (Baud rate: 600 bps to 460.8 Kbps)
- Ethernet: RJ45 (10/100 Mbps)
- Protocols: TCP/IP, UDP, Modbus RTU, Modbus TCP, HTTPD, DHCP, DNS
- Power Supply: 5 – 36 V DC wide voltage input
- Dimensions: 71 × 60 × 25 mm
- Casing: Flame-retardant PC+ABS material (IP30 grade) [1, 2, 3, 4, 5]

Common Use Cases

- Smart Grid/Power: Transmitting power usage and telemetry data over Ethernet.
- Unattended Weighing: Remotely controlling barrier gates and scales from a central control hub.
- Traffic Management: Acquiring and processing data from traffic light systems remotely. [1, 2]

For detailed documentation, software downloads, or to purchase, visit the PUSR USR-DR302 Product Page or review the USR-DR302 User Manual.
