FES ENERGY METER ENERGY ANALYZER WITH RS485 MODBUS RTU FOR PLC WITH SCADA IN PAKISTAN

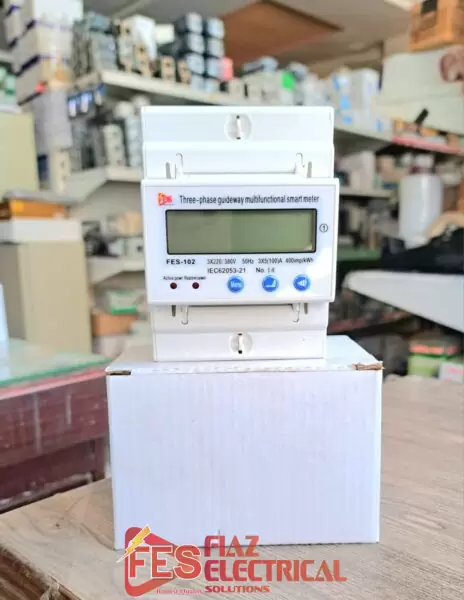

Product Introduction.
Fes three phase Energy meter has following features
1. KWH
2.KW
3. VOLTAGE
4. CURRENT
5. RS485 MODBUS RTU
6. 100A 220/400V 50Hz
For new version product technical manual click download
For old version product technical manual click download
Procedure to Run FES-102 Energy meter on PC
To download VtSCADAlight solftware for meter communication with PC click download
To download program for scada software click download
To run energy meter fes-102 parameters on PC
1. first install vtscadalight software (select vtscada light Free than click next, next… finish dont select any other option)
2. install open software and click add new application select “advanced” and and click next, select “get from changeset” click next select downloaded program file and add
3.FES-102 will be shown. Operation will be complete start the application screeen now FES-102
4. On PC Set communication parameter of rs485 to COM3, 8N1, 9600 (device manager >> ports>>ports setting>> advanced >> com port number = COM3 and other parameters should be 9600, 8 , none, 1, none)
5. On meter follow user manual and also set parameters follow this manual to set add=1,bd= 9600,data=8n1.

Product Introduction.
The three-phase multifunctional electric energy meter is a new three-phase electronic electric energy meter newly developed by our company Energy meter, which adopts microelectronic technology and imported special large-scale integrated circuit, and applies digital acquisition With advanced technologies such as sample processing technology and SMT process, the performance of the meter fully meets the national
standards GB/T117215.321-2008(IEC 62053-21:2003DT)and GB/TClass 1 or 0.55in 17215.322-2008(IEC 62053-22:2003IDT) According to the relevant technical requirements of electric energymeter, it can directly and accurately measure the AC voltage with rated
frequency of50/60Hz Current active electric energy, total active / reactive electric energy and input / output active /reactive electric energy are displayed by LCD Energy, three-phase voltage, current, total / phase active power, total jphase power factor, frequency, etc
The utility model has the advantages of good reliability, small volume.light weight beautiful appearance, flexible and convenient installation, etc.

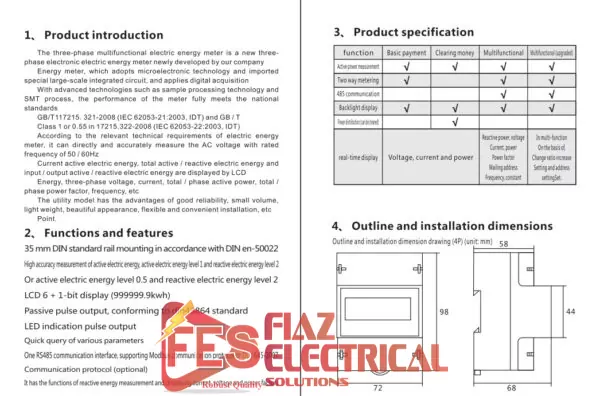

2.Functions and features
35 mm DIN standard rail mounting in accordance with DIN en-50022 High accuracy measurement of active electric energy, active electric energy level 1 and reactive electric eneray level 2Or active electric energy level 0.5 and reactive electric energy level 2 LCD 6+1-bit display(999999.9kwh) Passive pulse output, conforming to din43864 standardLED indication pulse output Ouick query of various parametersOne RS485 communication interface, supporting Modbus communication protocol or DL /645-2007 Communication protocol (optional)It has the functions of reactive eneray measurement and displaving current, voltage and power factor:

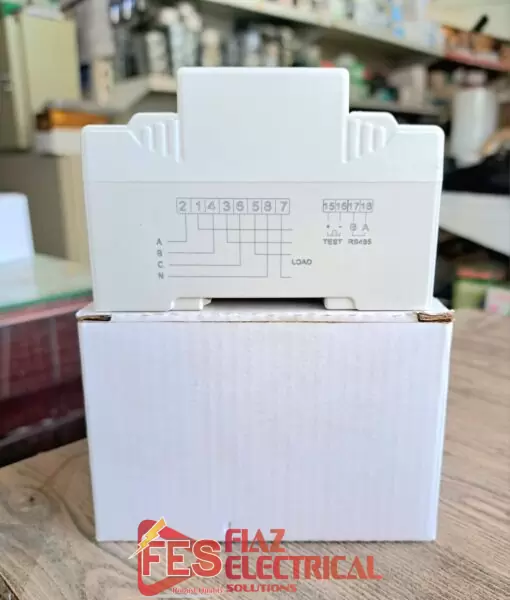

FES ENERGY METER ENERGY ANALYZER WITH RS485 MODBUS RTU FOR PLC WITH SCADA IN PAKISTAN

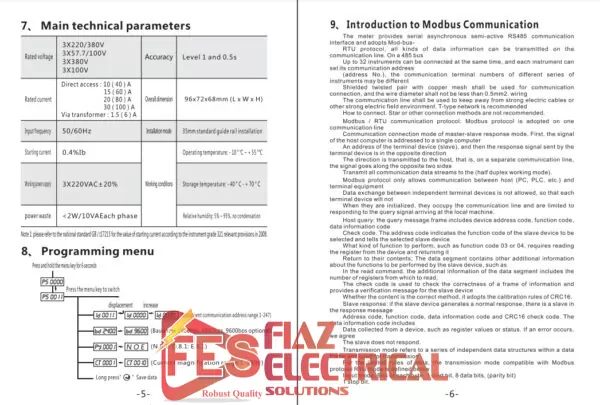

FES ENERGY METER ENERGY ANALYZER WITH RS485 MODBUS RTU FOR PLC WITH SCADA IN PAKISTAN

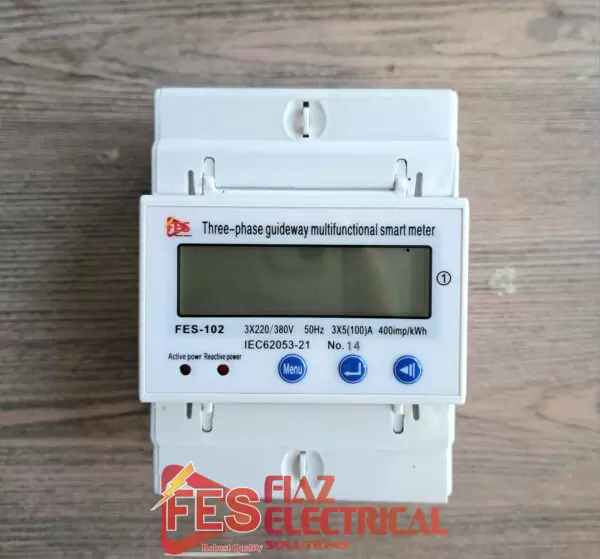

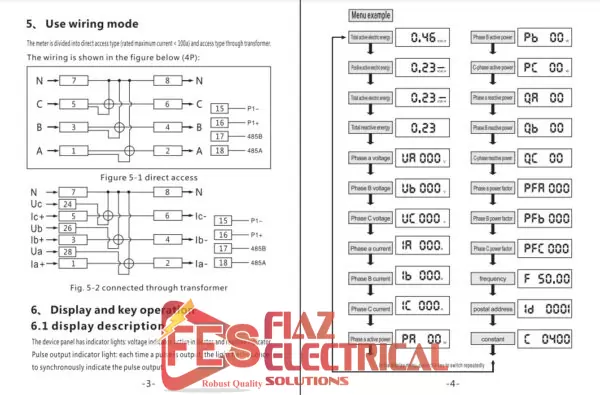

6、Display and key operation
6.1 display description
The device panel has indicator lights: voltage indicator, active indicator and reactive indicator.Pulse output indicator light: each time a pulse is output, the light flashes onceto synchronously indicate the pulse output.





FES ENERGY METER ENERGY ANALYZER WITH RS485 MODBUS RTU FOR PLC WITH SCADA IN PAKISTAN
