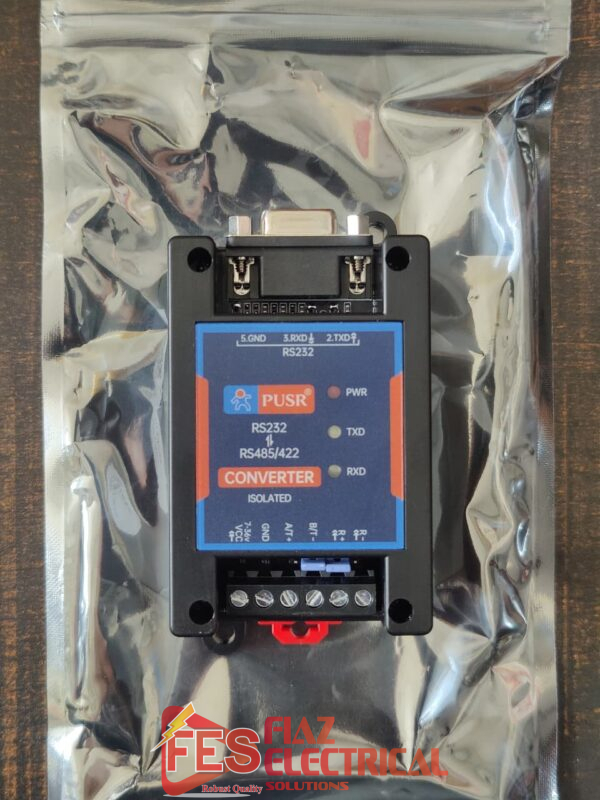

RS232 to RS485 isolated converter repeater industrial grade USR-HUB102S in Pakistan

Name: RS232 to RS485 isolated converter repeater industrial grade USR-HUB102S in Pakistan
SKU: usr-hub102s
Availability: InStock

₨ 4,500.00

دکاندار حضرات ہول سیل ریٹ اور بلٹی کے معاملات کے لیے اس نمبر پر واٹس ایپ/ کال کرے 03001178484

The USR-HUB102S is an industrial-grade, photoelectrically isolated 2-channel RS485 hub and repeater . It is primarily designed to split one RS485 master input into two isolated RS485 slave outputs. This allows users to extend their communication distance, change network topologies (e.g., star topologies), and prevent ground-loop interference in harsh industrial environments.

In stock

SKU: usr-hub102s Category: PLC , HMI , Programming cables in Pakistan Tag: RS232 to RS485 isolated converter repeater industrial grade USR-HUB102S in Pakistan

RS232 to RS485 isolated converter repeater industrial grade USR-HUB102S in Pakistan

The USR-HUB102S is an industrial-grade, photoelectrically isolated 2-channel RS485 hub designed to overcome the strict limitations of standard RS485 star bus architectures. Serving as both a data concentrator and a signal relay, this module splits one RS485 input channel into two distinct RS485 outputs, allowing seamless communication between master stations and multiple Modbus-RTU slave networks.

Engineered for harsh environments, the USR-HUB102S integrates an internal continuous DC/DC isolation mode alongside 2500Vrms optical isolation. This design completely separates your signal circuits to block ground loops and hazardous voltage surges from damaging expensive PLCs, sensors, and data acquisition hardware. With an expanded capacity of 128 nodes per channel, it easily scales complex automation networks across long distances using standard twisted-pair wiring.

5. Technical Specifications Table

Feature	Specification Details
Product Model	USR-HUB102S
Interface Standards	Compatible with RS232, RS485, and TIA/EIA protocols
Electrical Interface	Heavy-duty industrial terminal blocks
Signal Configuration	1 x RS485 Bus Input → 2 x RS485 Channel Outputs
Node Load Capacity	Up to 128 nodes per individual RS485 channel
Operating Mode	Asynchronous half-duplex (two-way serial communication)
Transmission Medium	Standard twisted pair or high-quality shielded cable
Isolation Rating	2500Vrms isolation voltage / 500V DC continuous insulation
Surge Protection	600W lightning/surge protection per line with ±15KV ESD protection
Power Input Range	DC 9V – 40V, 500mA
LED Indicators	Power status (POW), Transmit (TXD), and Receive (RXD)

6. Common Application Scenarios

Industrial Automation: Splitting serial data lines from a central PLC out to multiple distributed sensor networks.
Building Management Systems (BMS): Connecting heating, ventilation, and security controllers back to a central workstation.
Power Grid Monitoring: Centralizing Modbus-RTU smart meter polling schemes safely across substations.
Smart Agriculture: Linking remote soil and environmental monitoring arrays across extended distances.
