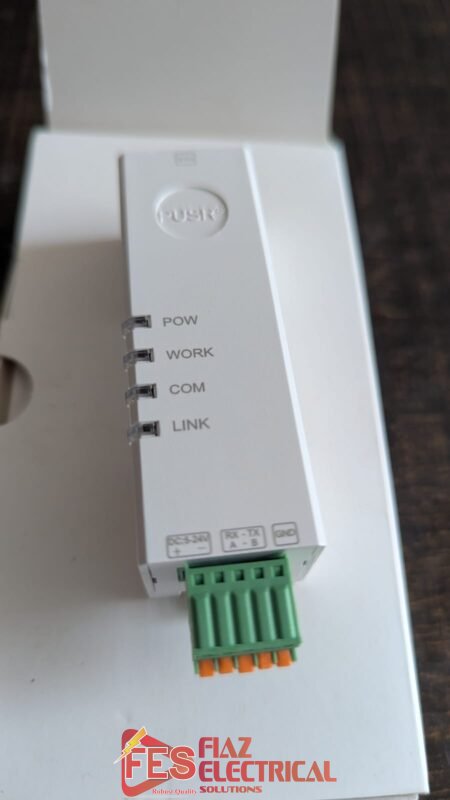

USR-DR134 “Lipstick” Size Serial Device Server RS485 to Ethernet Modbus Rtu to tcp gateway in pakistan

Name: USR-DR134 "Lipstick" Size Serial Device Server RS485 to Ethernet Modbus Rtu to tcp gateway in pakistan
SKU: usr-dr134
Price: 5500.00 PKR
Availability: InStock

₨ 5,500.00

دکاندار حضرات ہول سیل ریٹ اور بلٹی کے معاملات کے لیے اس نمبر پر واٹس ایپ/ کال کرے 03001178484

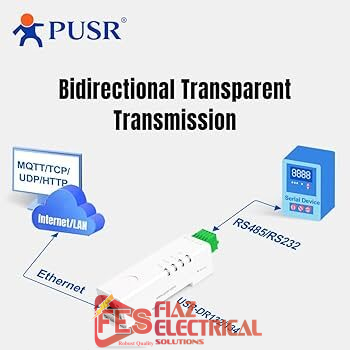

USR-DR134 “Lipstick” Size Serial Device Server RS485 to Ethernet Modbus Rtu to tcp gateway in pakistan. The USR-DR134 Serial Device Server is an ultra-compact, industrial-grade RS485 to Ethernet converter featuring a space-saving “lipstick” size design. It provides seamless, bidirectional transparent data transmission between legacy serial infrastructure and IP-based networks. Built with an integrated Modbus Gateway, an optimized TCP/IP protocol stack, and convenient 35mm DIN-rail mounting, it is perfect for space-constrained industrial IoT, smart grid, and automation environments.

In stock

SKU: usr-dr134 Category: PLC , HMI , Programming cables in Pakistan Tag: USR-DR134 "Lipstick" Size Serial Device Server RS485 to Ethernet Modbus Rtu to tcp gateway in pakistan

USR-DR134 “Lipstick” Size Serial Device Server RS485 to Ethernet Modbus Rtu to tcp gateway in pakistan

Industrial-Grade RS485 Serial to Network Connectivity

The USR-DR134 Converter provides a robust solution for bridging communication gaps between RS485 industrial equipment and modern Ethernet architectures. By connecting legacy hardware to an IP infrastructure, operators can easily monitor, configure, and manage field equipment remotely from any internet-connected server or SCADA system.

Ultra-Compact “Lipstick” Profile with Toolless Wiring

Engineered for tight control panels and heavily packed junction boxes, the USR-DR134 boasts a form factor roughly the size of a finger. Beyond its small footprint, it eliminates traditional terminal installation headaches by utilizing a premium push-type, pluggable wire connector. You can securely wire up the serial connection instantly without needing a screwdriver.

Smart Protocol Integration & Modbus Gateway

This versatile device functions as an intelligent Modbus RTU to Modbus TCP gateway. It natively supports modern IoT edge standards including MQTT, TCP Server/Client, UDP Server/Client, and HTTPD modes. Furthermore, it features light edge computing capabilities, allowing automatic polling of Modbus commands with optional JSON data reporting directly to central servers.

Fail-Safe Reliability for Harsh Environments

Built strictly to industrial standards, the device handles extreme conditions effortlessly with a wide operating temperature range from -40°C to 85°C. It is reinforced with hardware and software dual watchdogs to guarantee automatic reboots if system hangs occur, coupled with 1.5KV built-in network magnetic isolation to block voltage surges.

Key Product Technical Features

- Compact Form Factor: Innovative “lipstick” shape saves valuable rail real estate.
- No-Tool Connection: Pluggable, push-in terminal blocks speed up installation times.
- Modbus Converter: Seamlessly translates Modbus RTU into Modbus TCP structures.
- Edge JSON Reporting: Automatically formats data points into JSON outputs for server ingestion.
- Dual Watchdog Safety: Built-in system keeping communication lines online 24/7.
- Magnetic Isolation: 1.5KV network protection guards against external electronic noise.
- Configurable Protocol: Supports Web UI parameter setup, AT commands, and virtual COM utility software.

Detailed Specifications Matrix

Parameter / Catalog	Value
Manufacturer & Model	PUSR / USR-DR134
Serial Interface	1 x RS485 Terminal Port
Network Interface	1 x RJ45 Port (10/100 Mbps, Auto MDI/MDIX)
Serial Baud Rate	600 bps to 230.4 Kbps
Input Power Voltage	5V to 24V DC
Power Interface	Pluggable Push-Type Wire Connector
Supported Software Protocols	TCP, UDP, HTTP, IPV4, ICMP, DHCP, ARP, MQTT
Modbus Functions	RTU/TCP Conversion, Modbus Polling, RTU to JSON
Operating Temperature	-40°C to +85°C
Physical Dimensions	74 mm x 24 mm x 22 mm
Mounting Capability	35mm Standard DIN-Rail or Surface Screw Holes
