Toggle Switch Double Pole Double Throw (DPDT)

As an experienced human writer, I understand the importance of having a reliable and versatile electrical switch in your projects. One such switch that has gained popularity is the Toggle Switch Double Pole Double Throw in Pakistan(DPDT). In this comprehensive guide, I will delve into the intricacies of DPDT switches, their functionality, common applications, and the factors to consider when choosing the right one for your needs.

Understanding the Functionality of DPDT Switches

DPDT switches are a type of electrical switch that offer a unique and versatile functionality. Unlike a standard single-pole, single-throw (SPST) switch, which has two terminals and can only turn a circuit on or off, a DPDT switch has four terminals and can control two separate circuits simultaneously.

The key features of a DPDT switch include:

1. Double Pole: A DPDT switch can control two separate circuits, allowing you to switch between them with a single action.
2. Double Throw: The switch has two stable positions, allowing it to connect the circuits in two different ways, either in a “normal” or “reverse” configuration.

This flexibility makes DPDT switches ideal for a wide range of applications, from lighting control to motor reversing, and even audio equipment.

Factors to Consider When Choosing a DPDT Switch in Pakistan

When selecting a DPDT switch for your project in Pakistan, there are several factors to consider to ensure you make the right choice:

1. Electrical Ratings: Ensure the switch is rated for the appropriate voltage, current, and power requirements of your application.
2. Physical Dimensions: Consider the physical size and mounting requirements of the switch, as it needs to fit within the available space in your project.
3. Environmental Conditions: Evaluate the environmental factors, such as temperature, humidity, and exposure to elements, to choose a switch that can withstand the conditions in your location.
4. Durability and Lifespan: Look for DPDT switches with a high number of switching cycles and a long lifespan to ensure reliable performance over time.
5. Accessibility and Ease of Use: Choose a switch with a user-friendly design and intuitive operation, making it easy to interact with during use.

Installation and Wiring Guide for DPDT Switches

Properly installing and wiring a Toggle Switch Double Pole Double Throw  is crucial for its safe and efficient operation.

1. Determine the Switch Location: Identify the ideal location for the DPDT switch, considering accessibility, visibility, and proximity to the circuits it will control.
2. Prepare the Mounting Surface: Ensure the mounting surface is clean, level, and can support the weight of the switch.
3. Connect the Wiring: Carefully follow the manufacturer’s instructions to connect the four terminals of the DPDT switch to the appropriate circuits.
4. Secure the Switch: Firmly mount the DPDT switch in place, using the appropriate hardware and techniques to prevent any movement or displacement.

Troubleshooting Common Issues with DPDT Switches

While DPDT switches are generally reliable, you may occasionally encounter some common issues.

1. Switch Not Functioning: Check the wiring connections, ensure the switch is properly mounted, and verify the electrical ratings match the requirements of your application.
2. Intermittent Operation: Inspect the switch for any signs of wear or damage, and consider replacing it if necessary. Ensure the switch is not being subjected to excessive vibration or physical stress.
3. Incorrect Circuit Switching: Verify the wiring connections and ensure the switch is properly configured to control the intended circuits.
4. Electrical Arcing or Sparking: This may indicate a problem with the switch’s electrical ratings or the circuits it is controlling.

Making an Informed Decision for Your Electrical Needs with DPDT Switches

The Toggle Switch Double Pole Double Throw (DPDT) is a versatile and reliable electrical switch that offers a wide range of applications in Pakistan. By understanding its functionality, common uses, and the factors to consider when choosing the right DPDT switch, you can make an informed decision that meets your specific electrical needs.

If you’re in the market for a high-quality DPDT switch in Pakistan, be sure to check out our extensive selection of options. Our team of experts is here to help you find the perfect switch for your project and provide guidance on installation and troubleshooting.

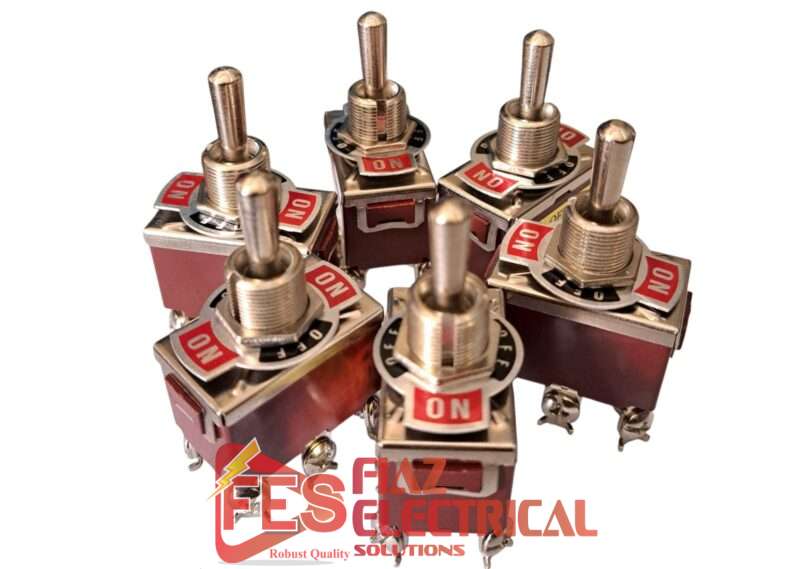

Toggle Switch Double Pole Double Throw in Pakistan(DPDT)

• ON-OFF-ON Toggle Switch
• DPDT – Double Pole Double Throw
• No. of Pole: 6
• Rating: 15A 250VAC
• M12 Cutout diameter
• Ideal for Marine and Industrial use
