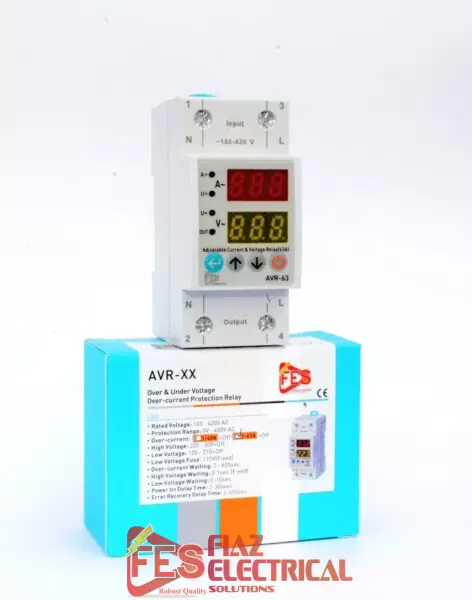

FES 63A OVER AND UNDER VOLTAGE AND CURRENT PROTECTION RELAY PAKISTAN

FES 80A OVER AND UNDER VOLTAGE AND CURRENT PROTECTION RELAY PAKISTAN

FES 80A OVER AND UNDER VOLTAGE AND CURRENT PROTECTION RELAY PAKISTAN

Bulgaria

Home protection 63A 220V DIN rail voltage adjustable device
describe
A surge protector like this is manufactured by the well-known brand Mora and is an electrical appliance or device designed to protect electrical equipment from voltage spikes and current spikes. Surge protectors try to limit the voltage supplied to electronic devices by blocking or short-circuiting to ground any unwanted voltage above the safety threshold

Specification

FES MORA 80A OVER AND UNDER VOLTAGE AND CURRENT PROTECTION RELAY PAKISTAN

1. Rated working current: 63A
2. Overvoltage protection value: AC 230V-AC 275V; the factory default is 275V
3. Undervoltage protection value: AC 160V-AC 220V; factory default is 175V
4. Automatic shutdown delay: 0-30 seconds; the factory default is 30 seconds
5. Overcurrent protection value: 0-63A; factory default is 63A
6. Effective voltage display range 70-400V
7. Effective current display range 0-99.9A
8. Can withstand lightning surge voltage in the 5kV range
9. 8 Modular contour design and rail installation
10. Rated working voltage: AC 230V, 50Hz
11. Maximum short-circuit withstand current: 3000A below 63A, 4500A above 50A (action time 10ms)
12. Action time: 0-30 seconds; the factory default is 30 seconds
13. Own power consumption <1.5 watts
14. Mechanical life of motor: >100,000 times
15. Dimensions: 80 x 37 x 66 mm (length x width x height)
16. Ambient temperature = standard
17. Working environment temperature range: -25℃～55℃
18. Relative humidity: 45-90% RH: 40 C
19. Latitude: <2000m
20. Pollution degree: Level 2

The package includes:

1x surge VA protector
