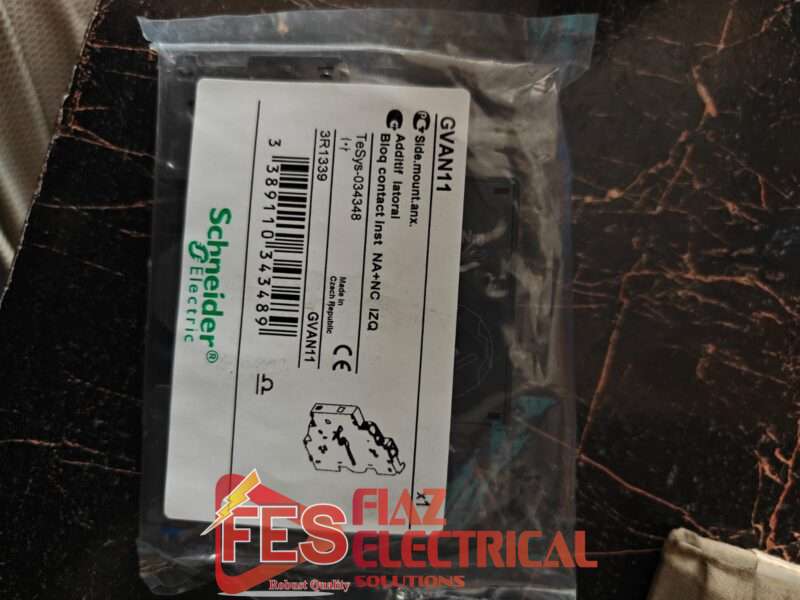

Side Auxiliary GVAN11 for MPCB in Pakistan

Name: Side Auxiliary GVAN11 for MPCB in Pakistan
SKU: Side Auxiliary GVAN11 for MPCB in Pakistan
Availability: InStock

₨ 850.00

دکاندار حضرات ہول سیل ریٹ اور بلٹی کے معاملات کے لیے اس نمبر پر واٹس ایپ/ کال کرے 03001178484

Core Specifications

Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC) instantaneous contacts.
Mounting Location: Left-hand side of the breaker (allows up to 2 blocks to be side-mounted).
Compatibility: Perfectly pairs with Schneider TeSys GV2 (e.g., GV2ME, GV2P, GV2L) and TeSys GV3 (e.g., GV3P, GV3L) motor circuit breakers.
Electrical Rating: Operational up to 6A / 690V AC and 6A / 240V DC.
Application: Designed for remote status signaling, control interlocking circuits, and PLC digital inputs
Installation Tip
When installing the front-mounted GVAE11 onto your MPCB, make sure the circuit breaker is switched to the STOP or tripped position before snapping the contact block into the designated front slot
