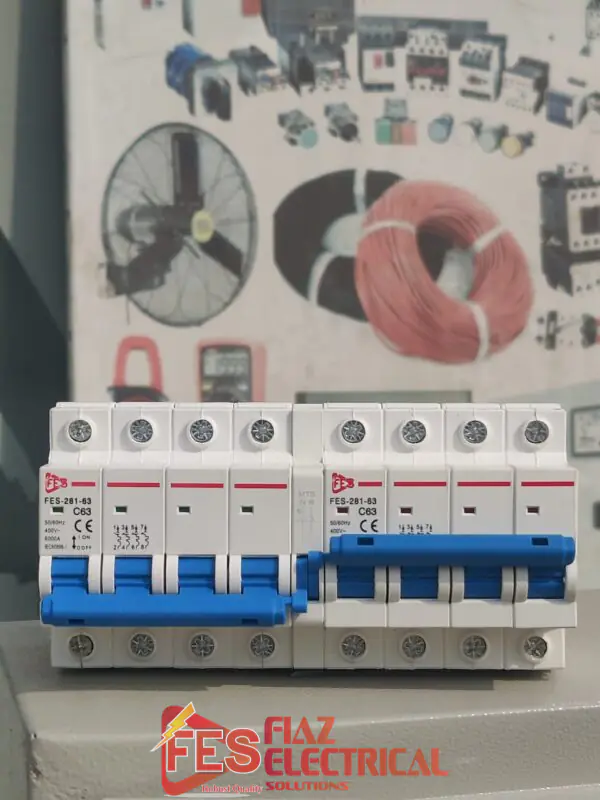

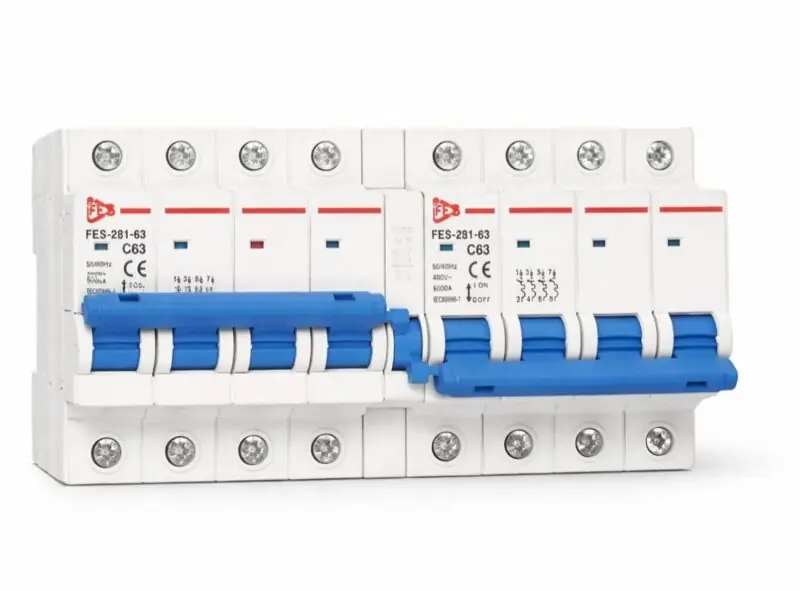

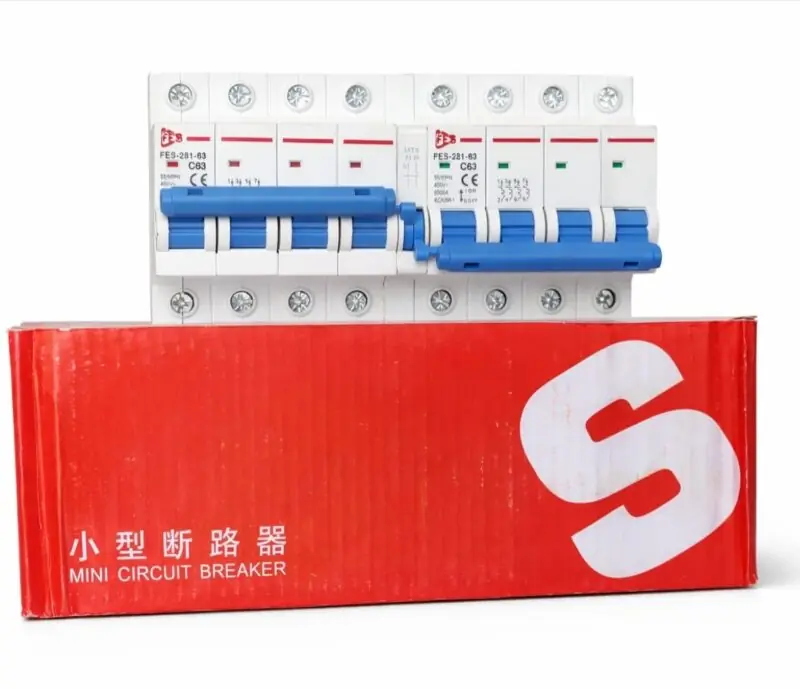

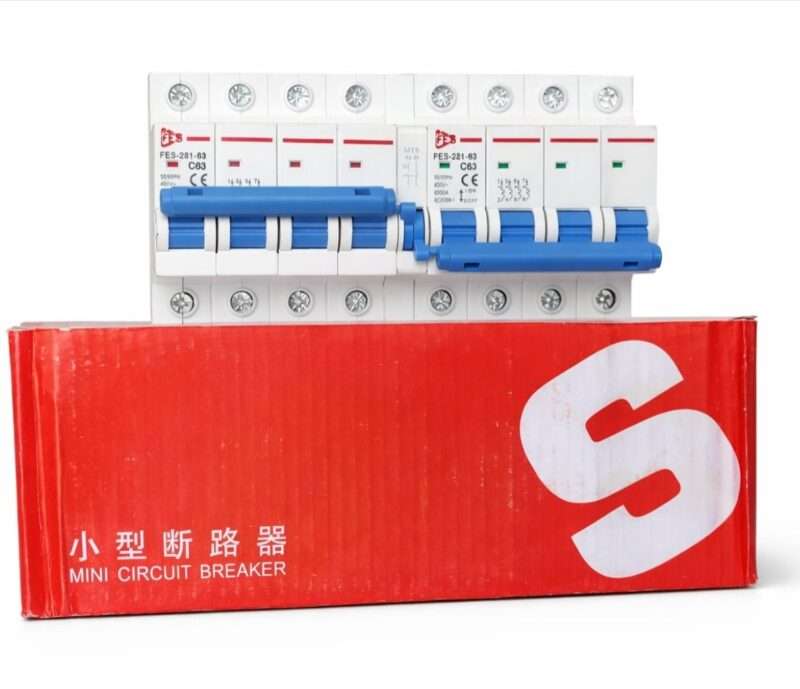

A 4-pole 63 Amp manual transfer switch (MTS) is a safety device used to switch electrical loads between two power sources, typically mains utility (e.g., WAPDA) and a backup source like a generator or solar inverter.
Key Features and Specifications
Current Rating: 63A, suitable for heavy residential and light commercial loads.
Configuration: 4-pole (2P) design handles both Phase (Live) and Neutral lines for single-phase systems.
Interlock Mechanism: A critical safety feature that prevents both power sources from being connected simultaneously, eliminating the risk of backfeeding or short circuits.
Mounting: Most modern breaker-type models are designed for easy installation on standard 35mm DIN rails within distribution boards (DB boxes).
Protection: Many models, such as those fromvFES, combine transfer functionality with circuit breaker protection against overloads and short circuits

Typical Wiring (Breaker Type)

Most 4P+4P interlock switches follow this general pattern:
Input 1 (Mains): Connect Live/Neutral to the first pair of bottom terminals.
Input 2 (Generator/Solar): Connect Live/Neutral to the second pair of bottom terminals.
Output (Load): The load is connected from the top terminals, which are bridged internally or externally depending on the model.
Positions:
I (Up/Down): Mains Power Active.
Middle: Off (Both sources disconnected).
II (Opposite): Backup Power Active

FES Manual Transfer Switch MTS 4 Pole 63A changeover in Pakistan

A manual transfer switch (MTS) is a safety device used to switch your home’s electrical load between the main utility grid and a backup power source, such as a portable generator. It serves as a bridge that physically isolates these two sources, preventing “backfeeding”—the dangerous situation where electricity from your generator flows back into utility lines, which can injure workers or damage your equipment.

you can also check breaker type changeover https://fiaz.com.pk/product/breaker-type-changeover-switch-in-pakistan/

Safety & Isolation: It ensures the house is connected to either utility power or the generator, but never both at once.
Convenience: Eliminates the need to run multiple extension cords through windows or doors.
Hardwired Appliance Support: Allows you to power appliances that cannot be plugged into a standard outlet, such as well pumps, central air conditioning, or water heaters.
